Before you even think about cracking open the packaging on that new doorknob, let’s talk about what really makes an installation successful. After countless years on the job, I can tell you the secret isn’t brute force—it’s preparation. Getting your tools and measurements sorted out first is the difference between a frustrating afternoon and a perfectly hung door.

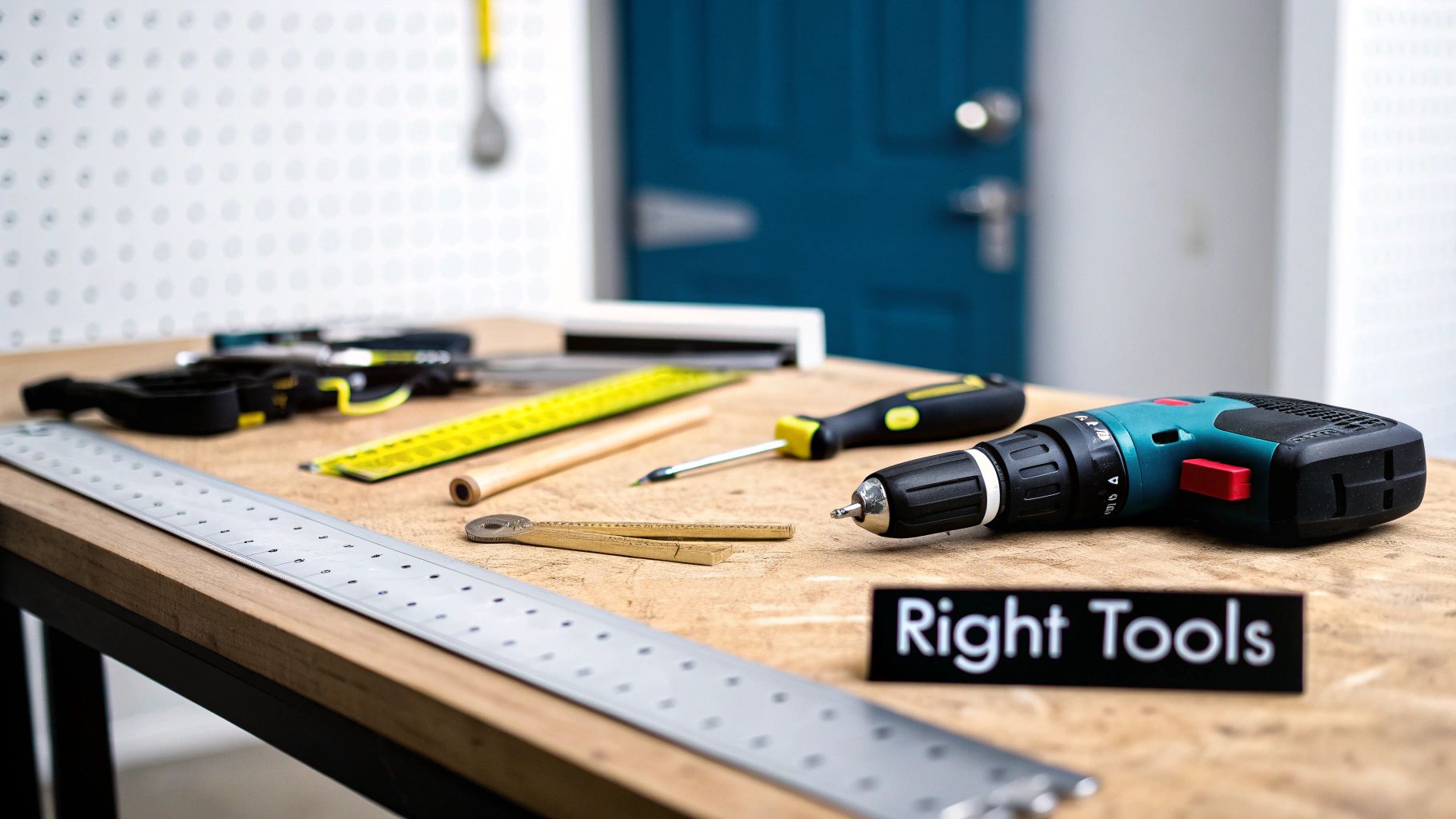

Gathering the Right Tools for the Job
Walking into a job with the right toolkit is half the battle. A clean, secure fit versus a wobbly, misaligned handle often comes down to having the proper equipment on hand from the start.
Sure, you’ll need the obvious stuff like a drill and a good set of screwdrivers. But to really get a professional finish, a few other items are non-negotiable. A sharp wood chisel and a small hammer are your best friends if you need to adjust or create a mortise—that’s the recessed pocket where a hinge or latch plate sits flush with the wood. And a combination square? Absolutely invaluable for getting those latch and strike plates perfectly vertical and aligned.
Here’s a quick checklist of what I keep in my bag for any door hardware job. Having these items ready will save you a lot of headaches.
Essential Door Hardware Installation Toolkit
| Tool/Supply | Primary Use | Pro Tip |
|---|---|---|
| Drill/Driver | Driving screws, boring new holes | Use a variable-speed drill for better control to avoid stripping screw heads or damaging the door. |
| Screwdrivers | Manual tightening/loosening of screws | Keep both Phillips and flat-head screwdrivers handy; older hardware often uses flat-head screws. |
| Tape Measure | Verifying backset, door thickness, and bore hole placement | A quality tape measure with a sturdy lock is easier to use when you’re working alone. |
| Combination Square | Ensuring latch and strike plates are perfectly square and plumb | Use it to mark your chisel lines for a clean mortise cut. |
| Wood Chisel & Hammer | Creating or adjusting mortises for a flush fit | Always chisel with the bevel side down for mortises. Tap gently; you can always remove more wood, but you can’t add it back. |
| Utility Knife | Scoring the outline of a mortise for a crisp edge | A sharp blade prevents the wood grain from splintering when you start chiseling. |
| Safety Glasses | Protecting your eyes from wood chips and debris | A must-have. Don’t even start drilling without them. |
Having these tools laid out and ready to go before you start is a game-changer. Trust me.
Essential Pre-Installation Measurements
Never, ever skip the measuring tape. Seriously. Taking a few key measurements at the outset prevents that sinking feeling you get when you realize the new deadbolt won’t fit the hole. It only takes a minute.
Here are the critical dimensions you need to check:
- Backset: This is just the distance from the edge of the door to the very centre of the main hole for the knob. It’s almost always one of two sizes: 2-3/8 inches or 2-3/4 inches.
- Door Thickness: Most standard interior doors are 1-3/8 inches thick, while exterior doors are usually a beefier 1-3/4 inches. Your hardware screws are sized for these thicknesses, so double-check.
- Cross Bore and Latch Bore: The cross bore is the big hole for the knob assembly itself. The latch bore is the smaller one on the door’s edge where the latch slides in. Measure their diameters to ensure your new hardware is compatible.
On bigger jobs, like a commercial building here in Canada, this planning gets way more involved. We have to coordinate with electricians for smart locks and review the entire operational sequence to meet specific building codes and accessibility standards. You can discover more insights about these building standards to see how complex it can get.
Pro Tip: As you take the old hardware off, toss all the little screws and parts into a magnetic bowl or a labelled Ziploc bag. It’s a simple habit that will save you from hunting for a lost screw later and keeps things tidy.
Replacing a Doorknob or Lever Set
Alright, with your tools laid out and measurements confirmed, let’s get to it. Swapping out a doorknob or a lever is one of those small projects that can instantly update the feel of a room. The secret to a solid, jiggle-free installation isn’t about speed; it’s about being methodical. We’ll start by getting the old hardware off cleanly before moving on to the new set.
First things first, let’s remove the old knob. Head to the interior side of the door—the side with the lock—and look for the mounting screws. You’ll usually find two of them holding the whole thing together.
As you start to loosen those screws, get a good grip on both handles. This simple step prevents them from dropping and dinging your floor or the door itself. Once they’re out, the two halves should slide apart without much fuss.
Removing the Old Latch
Now, turn your attention to the edge of the door. The latch mechanism is held in by a couple of small screws on its faceplate. Take those out and keep them somewhere safe for a moment.
With the screws gone, the latch assembly should slide right out of its cavity. After years of service (and maybe a few coats of paint), it might be a little stubborn. If it doesn’t want to budge, just give it a gentle push from the other side using a flat-head screwdriver through the main doorknob hole. That almost always works.
Here’s a classic problem: stripped screw heads on ancient hardware. If you run into one, don’t despair. Just stretch a wide rubber band over the screw head before putting your screwdriver on it. The rubber gives you that extra bite you need to turn a worn-out screw without mangling it further.
Installing the New Latch and Knob
With the old hardware out of the way, you’re ready to install the new set. Begin by sliding the new latch into the hole on the door’s edge. Pay close attention here: the angled side of the latch bolt must face the door jamb, which is the direction the door closes. This is absolutely critical for the door to latch correctly.
Fasten the new latch plate with the screws that came in the box. If you find the new plate is a slightly different size than the old mortise (the recessed area), you’ll need to do a little fine-tuning. Carefully trace the new plate’s outline with a utility knife, then use a sharp chisel to shave away a thin layer of wood for a perfect, flush fit.
Next, grab the exterior half of your new knob—that’s the one without any visible screws—and guide its spindle through the centre of the latch. Now, bring the interior half up to meet it, making sure the screw holes line up perfectly with the posts from the other side.
Thread the mounting screws in by hand at first. This helps you confirm everything is seated properly before you commit. Once it feels right, go ahead and tighten them down with your screwdriver until they are snug. Be careful not to overtighten! Cranking down too hard can warp the housing and cause the internal parts to bind, making the handle stiff or difficult to turn.
Final Checks and Strike Plate Adjustment
Give your new knob a few good turns. It should feel smooth, with no grinding or catching. Now for the real test: open and close the door a couple of times. You want to hear and feel the latch engage cleanly with the strike plate on the door frame.
If it doesn’t click into place with a satisfying thunk, the strike plate might need a little tweaking. Often, just tightening its screws will pull it back into alignment. If that doesn’t work, you may need to take the plate off and use a small metal file to slightly enlarge the opening. A few careful passes with the file is usually all it takes to get that perfect, secure close.
Installing Deadbolts for Maximum Security
Let’s talk about the single most important security feature on your door: the deadbolt. It’s your main line of defence against a break-in. Unlike the simple latch on a doorknob, a deadbolt’s solid steel bolt sinks deep into the door frame, which makes it a nightmare for anyone trying to force their way in. Getting this installation right isn’t just about making things look tidy—it’s about your safety.
Whether you’re swapping out an old, wobbly deadbolt or starting from scratch with a brand-new door, precision is everything. This is where a door lock installation kit, sometimes called a jig, becomes your best friend. It’s a simple little tool that clamps right onto your door, guiding your drill bits to ensure every hole is perfectly placed and aligned. It really takes the guesswork out of the equation.

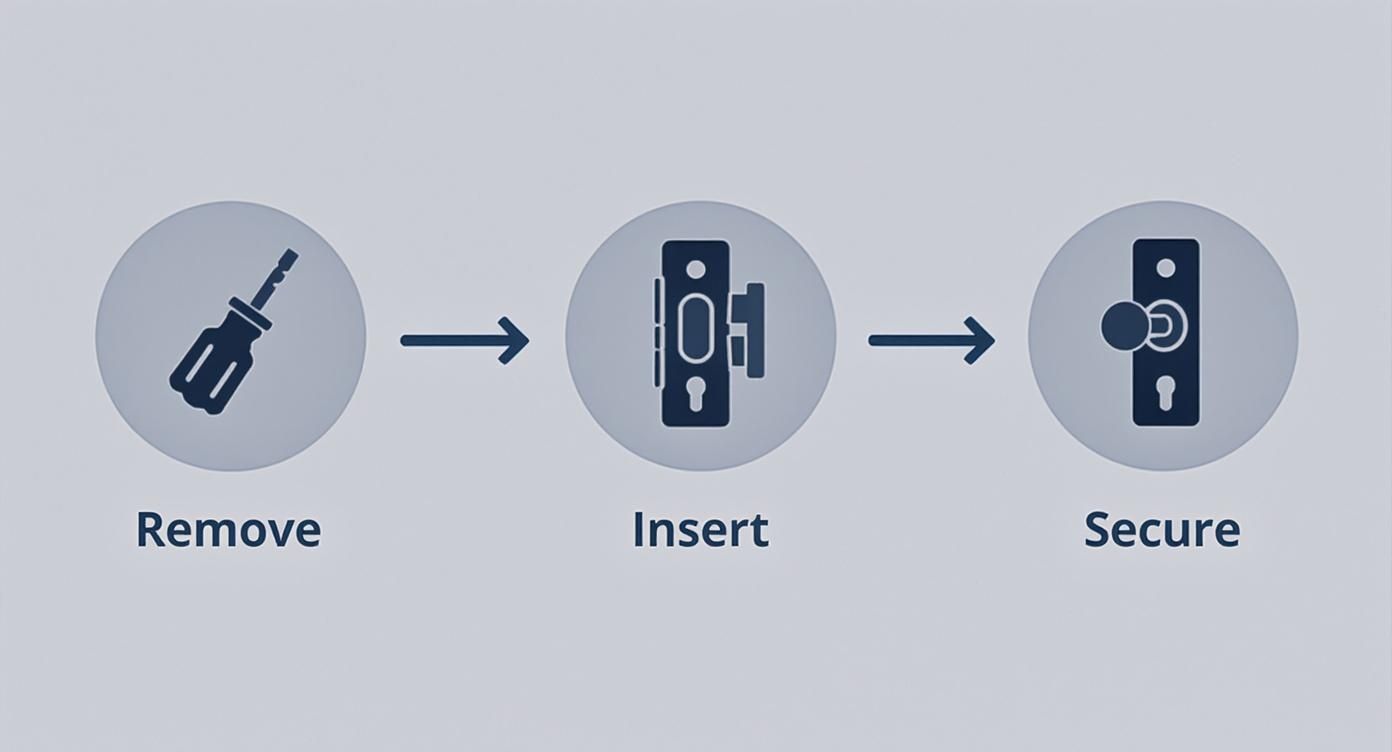

This handy infographic boils down the core process for most door hardware swaps into three key actions.
As you can see, the logic is straightforward: take the old stuff out, then carefully fit and secure the new hardware. This is the basic flow for almost any replacement job.
Choosing Your Deadbolt
Before you even think about drilling, you’ve got a choice to make. There are two main types of deadbolts, and they work quite differently.
- Single-Cylinder: This is what you see on most homes. It has a keyhole on the outside and a simple thumb-turn lever on the inside, letting you lock up quickly without fumbling for a key.
- Double-Cylinder: This one needs a key to lock or unlock from both sides. People often choose these for doors with glass panels nearby, so an intruder can’t just smash the glass, reach in, and unlock the door.
Important Safety Note: A double-cylinder deadbolt can be a serious fire hazard because you need a key to get out. For this very reason, many building codes across Canada actually restrict their use in homes. It’s crucial to check your local regulations before even considering one.
It’s no surprise that the demand for high-quality door hardware is climbing. The market was valued at USD 23.15 Billion in 2023 and is expected to hit USD 36.42 Billion by 2031. This trend shows just how much homeowners are prioritizing both security and aesthetics. If you’re interested in the details, you can read the full research about the door hardware market to see what’s driving this growth.
Addressing Common Roadblocks
Even with a jig, things can go sideways. The most common headache? A misaligned bolt and strike plate. When you shut the door, that deadbolt should slide into the frame smoothly, without any rubbing or resistance.
If you feel the bolt scraping or it just won’t extend all the way, your strike plate is probably off. The fix is usually simple: just loosen the screws holding the plate, nudge it up or down until the bolt moves freely, and tighten it all back up. If the hole in the frame is the culprit, a small round file is perfect for carefully enlarging it. Taking an extra five minutes to get this alignment perfect means your deadbolt will work exactly as it should for years to come.
Getting a Perfect Fit with New Hinges
While knobs and locks might get all the glory, hinges are the real unsung heroes of any door. When they’re installed just right, your door swings silently and latches with a satisfying click. But when they’re off, you’re left with that annoying sag, a stubborn sticking point, or an uneven gap that just looks wrong.
Swapping out door hinges is a pretty straightforward job, but getting that flawless, factory-quality fit comes down to one crucial detail: the hinge mortise. Think of it as the shallow, recessed pocket that allows the hinge plate (the “leaf”) to sit perfectly flush with the edge of the door and the jamb. If that mortise is too deep, the door will bind against the frame. Too shallow, and you’ll have an ugly gap.
Creating the Perfect Mortise
For a clean and professional look, precision is everything. The first thing you’ll want to do is trace the outline of your new hinge onto the door’s edge. I always recommend using a sharp utility knife for this, not a pencil. Scoring the wood first gives you a clean line and helps prevent the wood from splintering when you start carving.
From here, you’ve got two main ways to cut out the mortise:
- The Classic Chisel Method: Grab a sharp wood chisel and a hammer. With the chisel’s bevel facing down into the mortise area, carefully tap along your scored lines. Make a series of shallow cuts across the grain inside the outline, then gently pare away the wood. Your goal is to reach a depth that perfectly matches the thickness of your hinge leaf.
- The Power Router Method: If you’re looking for an exceptionally clean and uniform result, nothing beats a compact router with a hinge mortising template. This setup is a lifesaver, especially if you’re hanging a brand-new door, because it guarantees every mortise is identical in size and depth.
A word of caution from experience: It’s incredibly easy to take off too much wood. Always start shallow. You can always remove a little more if you need to, but trying to add wood back with filler is a real headache.
Aligning Hinges to Prevent Sagging
Once your mortises are cut, it’s all about alignment. Getting this right is the secret to a door that hangs straight and true for years.
I find it’s always best to attach the hinge leaves to the door first. Then, prop the door up in the frame. A few shims are perfect for this, helping you create a consistent 1/8-inch gap along the top.
With the door sitting perfectly, swing the hinge leaves over into their mortises on the jamb. Start by putting just one screw in the top hinge to hold things in place. Now, before you drive in any other screws, grab your level and make absolutely sure the door is plumb.
After making any final tweaks, you can go ahead and install the remaining screws. This methodical approach is what prevents that dreaded door sag and gives you a smooth swing every time.
Solving Common Installation Problems
Even the most carefully planned DIY project can hit a snag. When you’re installing door hardware, a minor hiccup is almost part of the experience, but it doesn’t have to ruin your afternoon. Knowing how to quickly diagnose and fix the usual suspects can make all the difference.
Think of this as your go-to guide for those frustrating moments. Most of these common issues have surprisingly simple solutions that won’t have you starting over from square one.
The Latch Won’t Catch Properly
This is a classic. You swing the door shut, but instead of that satisfying “click,” it just bounces back slightly. The latch bolt isn’t seating correctly in the strike plate, leaving your door unlatched.
Nine times out of ten, this is a simple alignment problem. Houses settle, wood swells and shrinks, and doors can shift just enough over the years to knock things out of whack. The fix usually involves a small adjustment to the strike plate on the door frame.
- Look for the Evidence: Gently close the door and watch where the latch hits. You’ll probably see tiny scuff marks on the strike plate, telling you if the latch is striking too high, too low, or off to one side.
- A Little Filing Goes a Long Way: If it’s just barely off, a small metal file is your best friend. A few careful strokes to enlarge the opening in the right direction is often all you need.
- Time to Relocate: For a more significant misalignment, you’ll have to reposition the plate. Unscrew it, fill the old screw holes with a bit of wood filler (or the old-school trick of a glue-dipped golf tee), and then drill new pilot holes for the perfect spot.
The Doorknob Is Wobbly or Loose
There’s nothing worse than a wobbly doorknob. It feels flimsy and, if ignored, can eventually fail completely. Fortunately, this is usually the easiest fix on the list. The problem is almost always just a couple of loose mounting screws.
Flip to the interior side of the door and find the two screws holding the knob assembly in place. Grab a Phillips screwdriver and tighten them up until they feel snug. Just be careful not to overtighten them! Cranking down too hard can bind the internal mechanism, making the knob stiff and difficult to turn.
Pro Tip: If you find the screws keep loosening over time, here’s a trick from the pros. Back one screw out, put a single drop of a thread-locking compound like Loctite on it, and screw it back in. Do the same for the other. That will stop the vibrations from daily use from shaking them loose again.
The Screws Just Keep Spinning
You’re turning a hinge screw, but it’s not getting any tighter—it just spins in place. That’s the classic sign of a stripped screw hole. The wood fibres have been worn away, and the screw threads have nothing left to grip onto.
No need to panic or move the hinge. The fix is a time-tested trick. Grab a few wooden toothpicks, dip the ends in a little wood glue, and pack them into the stripped hole until it’s full. Snap them off flush with the surface, let the glue set, and you’ll have a brand-new “wooded” hole that the screw can bite into securely.
Common Installation Problems and Solutions
To make things even easier, here’s a quick-reference table for those head-scratching moments. It’s a great way to quickly identify what might be going wrong and how to tackle it.
| Problem | Likely Cause | Solution |
|---|---|---|
| Deadbolt is Stiff or Hard to Turn | The bolt is misaligned with the hole in the door frame. | Check for rub marks inside the hole. Use a Dremel or a small wood rasp to slightly enlarge the hole in the direction needed. |
| Door Doesn’t Close Smoothly | The door is rubbing against the frame, often due to a sagging hinge. | Tighten all hinge screws first. If that doesn’t work, one hinge may need to be shimmed with a piece of thin cardboard behind it. |
| The Latch Stays Depressed | The internal mechanism of the knob or lever is binding. | Loosen the two main mounting screws slightly. If that fails, the hardware itself might be faulty or installed incorrectly. |
| New Hardware Doesn’t Fit Old Holes | Backset or cross-bore measurements are different from the old hardware. | Use a door hardware installation kit to re-bore the holes to the correct size, or return the hardware for a model that matches your door’s specs. |
Most of the time, a bit of patience and knowing what to look for is all it takes to get your door hardware working perfectly. Don’t be afraid to take a step back, assess the situation, and try one of these simple fixes.
Knowing When to Call in a Pro
There’s nothing quite like the satisfaction of a DIY project done right. But even the most seasoned DIYer knows their limits. Learning how to install door hardware is a fantastic skill to have, but sometimes, making a quick call to a professional is the smartest move you can make. It can save you time, a massive headache, and even money in the long run.
Recognizing that turning point is crucial. Is this more than just a simple swap? For instance, if you’ve discovered your door frame is rotted or badly damaged, that’s your cue to stop. A handyman can properly assess the structural integrity and handle the carpentry repairs needed before any new hardware goes on. After all, slapping a brand-new deadbolt into a weak, compromised frame gives you a false sense of security.
When a Simple Swap Isn’t So Simple
Some jobs just have more moving parts and a higher risk of something going wrong. Diving into these without the right experience can lead to expensive mistakes, a damaged door, or hardware that just doesn’t work properly.
Here are a few classic scenarios where getting professional help is a really good idea:
- Warped or Misaligned Doors: If your door doesn’t sit flush in its frame, you’re not dealing with a hardware problem—it’s a door problem. A pro can figure out why it’s happening and has the specialized tools, like a power planer, to adjust the door or its jambs for a perfect fit.
- Installing High-End Electronic Locks: Smart locks are a brilliant upgrade, but they demand precision. The installation often requires very specific drilling and sometimes even a bit of low-voltage wiring. One wrong move could damage the lock, void your warranty, or worse, create a security loophole.
- Cutting into a Brand-New, Blank Door: Installing a lockset or deadbolt on a slab door that has no pre-drilled holes leaves absolutely zero room for error. A handyman will use a proper jig to bore the holes perfectly, making sure the lock operates as smoothly as it should.
A professional handyman brings more than just a toolbox; they bring experience. They’ve seen all the little things that can go sideways and know exactly how to fix them on the spot. What might be a frustrating, multi-hour ordeal for you is often a quick, efficient job for them.
Weighing the Cost Against Your Sanity
Hiring a professional is really an investment in getting the job done right the first time. You have to weigh the cost of their labour against the potential cost of your own mistakes, the value of your time, and the price of any specialized tools you’d need to buy.
To put it in perspective, consider the cost of a full exterior door installation in California. In San Francisco, for example, the average for this service is about $563.84 per door. That price reflects the precision and expertise needed for a secure, weatherproof fit. You can see a full breakdown of California door installation costs to get a better idea.
Ultimately, the choice is yours. It comes down to being honest about your own skills, the tools you have on hand, and how complex the job really is. For a straightforward knob replacement on a pre-drilled door? You’ve got this. But for anything that impacts the core security and function of your home, calling in a pro ensures it’s done perfectly.
When a project starts to feel like it’s spiralling, many homeowners ask, “Who should I use for door hardware installation in Toronto?” Don’t be afraid to call for backup. Odd Job Handyman Services has a team of trained, reliable pros ready to tackle any door hardware installation, from simple fixes to complex security upgrades. Make sure your home is safe and secure by booking a professional today at https://www.oddjob.ca.
